1.1 Amorphous Network and Thermal Stability

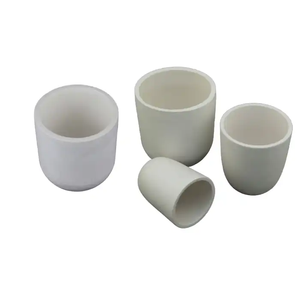

(Quartz Crucibles)

Quartz crucibles are high-temperature containers produced from merged silica, a synthetic form of silicon dioxide (SiO TWO) derived from the melting of natural quartz crystals at temperature levels going beyond 1700 ° C.

Unlike crystalline quartz, fused silica has an amorphous three-dimensional network of corner-sharing SiO four tetrahedra, which imparts outstanding thermal shock resistance and dimensional stability under quick temperature modifications.

This disordered atomic structure protects against cleavage along crystallographic airplanes, making merged silica much less prone to breaking during thermal cycling contrasted to polycrystalline ceramics.

The material displays a reduced coefficient of thermal expansion (~ 0.5 × 10 ⁻⁶/ K), among the most affordable among engineering products, allowing it to endure extreme thermal gradients without fracturing– a vital residential property in semiconductor and solar cell production.

Integrated silica also keeps outstanding chemical inertness against most acids, molten steels, and slags, although it can be slowly etched by hydrofluoric acid and hot phosphoric acid.

Its high conditioning point (~ 1600– 1730 ° C, depending on purity and OH content) permits sustained procedure at raised temperatures needed for crystal development and steel refining procedures.

1.2 Purity Grading and Micronutrient Control

The performance of quartz crucibles is very based on chemical pureness, specifically the concentration of metal contaminations such as iron, sodium, potassium, light weight aluminum, and titanium.

Also trace amounts (parts per million degree) of these pollutants can move right into liquified silicon throughout crystal development, weakening the electric properties of the resulting semiconductor material.

High-purity grades made use of in electronic devices producing typically contain over 99.95% SiO ₂, with alkali metal oxides limited to less than 10 ppm and shift steels listed below 1 ppm.

Contaminations originate from raw quartz feedstock or handling devices and are reduced through mindful choice of mineral sources and purification strategies like acid leaching and flotation.

In addition, the hydroxyl (OH) web content in integrated silica influences its thermomechanical actions; high-OH kinds supply much better UV transmission yet reduced thermal security, while low-OH versions are preferred for high-temperature applications as a result of decreased bubble formation.

( Quartz Crucibles)

2. Production Refine and Microstructural Design

2.1 Electrofusion and Forming Techniques

Quartz crucibles are primarily produced through electrofusion, a process in which high-purity quartz powder is fed into a rotating graphite mold within an electrical arc heating system.

An electrical arc generated in between carbon electrodes melts the quartz particles, which strengthen layer by layer to create a smooth, dense crucible shape.

This approach generates a fine-grained, homogeneous microstructure with very little bubbles and striae, important for uniform heat circulation and mechanical honesty.

Alternate approaches such as plasma combination and fire fusion are utilized for specialized applications calling for ultra-low contamination or details wall thickness profiles.

After casting, the crucibles go through controlled air conditioning (annealing) to relieve inner anxieties and prevent spontaneous splitting throughout solution.

Surface area ending up, including grinding and brightening, ensures dimensional precision and reduces nucleation websites for unwanted formation during use.

2.2 Crystalline Layer Engineering and Opacity Control

A specifying function of contemporary quartz crucibles, particularly those made use of in directional solidification of multicrystalline silicon, is the crafted internal layer structure.

During manufacturing, the internal surface is usually dealt with to promote the formation of a slim, regulated layer of cristobalite– a high-temperature polymorph of SiO TWO– upon very first heating.

This cristobalite layer acts as a diffusion barrier, lowering direct communication between molten silicon and the underlying fused silica, consequently lessening oxygen and metallic contamination.

Furthermore, the presence of this crystalline phase improves opacity, enhancing infrared radiation absorption and advertising more consistent temperature level distribution within the melt.

Crucible designers thoroughly stabilize the density and continuity of this layer to avoid spalling or breaking because of volume modifications throughout phase transitions.

3. Practical Efficiency in High-Temperature Applications

3.1 Function in Silicon Crystal Development Processes

Quartz crucibles are crucial in the manufacturing of monocrystalline and multicrystalline silicon, functioning as the primary container for molten silicon in Czochralski (CZ) and directional solidification systems (DS).

In the CZ process, a seed crystal is dipped right into molten silicon kept in a quartz crucible and slowly drew upwards while rotating, enabling single-crystal ingots to create.

Although the crucible does not directly contact the expanding crystal, interactions in between liquified silicon and SiO two wall surfaces bring about oxygen dissolution right into the thaw, which can impact service provider life time and mechanical strength in ended up wafers.

In DS procedures for photovoltaic-grade silicon, large-scale quartz crucibles allow the regulated air conditioning of countless kilos of liquified silicon right into block-shaped ingots.

Below, coverings such as silicon nitride (Si four N ₄) are put on the internal surface area to avoid adhesion and promote simple launch of the strengthened silicon block after cooling.

3.2 Deterioration Systems and Life Span Limitations

Despite their robustness, quartz crucibles break down throughout repeated high-temperature cycles due to several interrelated mechanisms.

Thick circulation or contortion takes place at extended direct exposure over 1400 ° C, leading to wall surface thinning and loss of geometric honesty.

Re-crystallization of integrated silica into cristobalite creates internal stress and anxieties due to volume expansion, potentially causing fractures or spallation that infect the thaw.

Chemical erosion occurs from reduction reactions in between liquified silicon and SiO ₂: SiO TWO + Si → 2SiO(g), producing unpredictable silicon monoxide that leaves and damages the crucible wall surface.

Bubble development, driven by entraped gases or OH teams, better compromises structural stamina and thermal conductivity.

These destruction pathways restrict the variety of reuse cycles and require precise process control to optimize crucible life-span and product yield.

4. Emerging Developments and Technological Adaptations

4.1 Coatings and Compound Alterations

To improve efficiency and resilience, progressed quartz crucibles integrate useful finishings and composite frameworks.

Silicon-based anti-sticking layers and drugged silica layers improve launch characteristics and reduce oxygen outgassing throughout melting.

Some makers incorporate zirconia (ZrO ₂) fragments right into the crucible wall surface to increase mechanical toughness and resistance to devitrification.

Research is continuous right into fully clear or gradient-structured crucibles created to maximize induction heat transfer in next-generation solar heating system layouts.

4.2 Sustainability and Recycling Challenges

With raising need from the semiconductor and photovoltaic or pv markets, sustainable use quartz crucibles has actually ended up being a priority.

Spent crucibles infected with silicon residue are hard to recycle due to cross-contamination dangers, leading to significant waste generation.

Initiatives concentrate on creating recyclable crucible liners, boosted cleaning procedures, and closed-loop recycling systems to recuperate high-purity silica for additional applications.

As gadget efficiencies demand ever-higher product purity, the function of quartz crucibles will continue to develop via innovation in products scientific research and procedure design.

In summary, quartz crucibles stand for an important user interface in between basic materials and high-performance electronic products.

Their special combination of pureness, thermal durability, and structural layout allows the construction of silicon-based innovations that power modern-day computer and renewable resource systems.
