1. Product Characteristics and Architectural Style
1.1 Structure and Crystalline Phases of Alumina

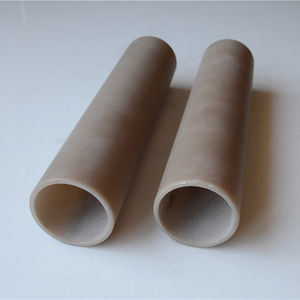

( Alumina Ceramic Tubes)
Alumina (Al ₂ O TWO) ceramic tubes are largely made from high-purity light weight aluminum oxide, with pureness degrees generally varying from 90% to 99.8%, relying on the designated application.
The dominant crystalline stage in fully thick, high-temperature sintered tubes is α-alumina (corundum), which exhibits a trigonal crystal structure and exceptional thermodynamic stability.
This phase change from precursor hydroxides (e.g., boehmite or gibbsite) to α-alumina happens above 1100 ° C and leads to a dense, interlacing microstructure that gives superior mechanical toughness and chemical resistance.
Higher pureness grades (≥ 99.5%) take full advantage of firmness, use resistance, and dielectric performance, while lower-purity formulations may include secondary phases like mullite or glazed grain border stages to minimize expense or tailor thermal growth.
The ability to regulate grain size, porosity, and stage composition throughout handling allows designers to fine-tune alumina tubes for particular useful demands throughout varied industrial domain names.
1.2 Mechanical, Thermal, and Electric Properties
Alumina ceramic tubes exhibit a distinct mix of physical buildings that make them essential in demanding design settings.
With a Vickers solidity exceeding 1500 HV, they are extremely immune to abrasion and disintegration, exceeding most steels and polymers in wear-prone systems.
Their compressive stamina can get to 2000 MPa, allowing architectural use under high mechanical lots, while flexural strength normally ranges from 300 to 500 MPa, depending upon density and surface area finish.
Thermally, alumina preserves stability approximately 1700 ° C in oxidizing ambiences, with a low coefficient of thermal growth (~ 8 ppm/K), contributing to exceptional thermal shock resistance when correctly made.
Although its thermal conductivity (~ 30 W/(m · K)) is moderate contrasted to metals or light weight aluminum nitride, it suffices for several high-temperature applications where electric insulation and architectural honesty are focused on.
Electrically, alumina is an impressive insulator with volume resistivity > 10 ¹⁴ Ω · cm and high dielectric strength (> 15 kV/mm), making it ideal for electric feedthroughs, sensing unit real estates, and high-voltage insulation.

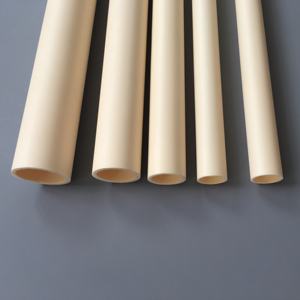

( Alumina Ceramic Tubes)
2. Manufacturing Processes and Dimensional Control
2.1 Shaping and Creating Methods
The production of alumina ceramic tubes involves sophisticated developing techniques customized to achieve specific measurements, wall density uniformity, and surface area high quality.
Common strategies include extrusion, isostatic pressing, and slide casting, each matched to various dimension arrays and performance needs.
Extrusion is extensively used for long, straight tubes with regular cross-sections, where a plasticized alumina paste is forced with a die and cut to length prior to drying and sintering.
For high-precision or thin-walled tubes, cool isostatic pressing (CIP) uses uniform stress from all directions to compact eco-friendly bodies, minimizing distortion and boosting density homogeneity.
Slide spreading, including the deposition of a colloidal alumina suspension (slip) onto a permeable plaster mold, is excellent for complicated or large-diameter geometries with variable wall thickness.
After forming, tubes undergo careful drying to avoid cracking, followed by binder burnout and high-temperature sintering (1500– 1650 ° C )to attain complete densification and dimensional security.
2.2 Finishing and Quality Assurance
Post-sintering procedures such as centerless grinding, lapping, and polishing are utilized to attain tight resistances, smooth surface coatings, and precise internal and outer diameters.
Tolerances as tight as ± 0.01 mm are possible for essential applications in semiconductor processing or logical instrumentation.
Surface roughness can be reduced to Ra < 0.1 µm, decreasing particle trapping and enhancing compatibility with ultra-high vacuum (UHV) or cleanroom environments.
Non-destructive screening techniques– consisting of ultrasonic evaluation, X-ray radiography, and dye penetrant testing– guarantee architectural stability and lack of fractures or gaps.
Dimensional metrology using coordinate measuring devices (CMM) or laser scanning validates conformity with design specs, particularly for personalized or high-volume manufacturing runs.
3. Practical Efficiency in Harsh Environments
3.1 Resistance to Thermal and Chemical Destruction
One of the most engaging advantages of alumina ceramic tubes is their capability to endure severe thermal and chemical conditions where steels and polymers fall short.
They remain dimensionally steady and mechanically durable in continuous service at temperatures above 1500 ° C, making them suitable for furnace liners, thermocouple protection sheaths, and glowing heating system tubes.
Their inertness to molten steels (e.g., light weight aluminum, zinc, and non-ferrous alloys), liquified salts, and several acids (other than hydrofluoric and warm phosphoric acid) enables usage in metallurgical and chemical handling devices.
In oxidizing and minimizing environments, alumina does not deteriorate or militarize undesirable responses, protecting process pureness in semiconductor and glass production.
This chemical inertness likewise protects against contamination in high-purity liquid handling systems, including those made use of in pharmaceutical and food processing sectors.
3.2 Electrical Insulation and Plasma Resistance
In electric and plasma atmospheres, alumina tubes act as shielding obstacles that preserve circuit honesty under high voltage and raised temperature level.
They are utilized in high-intensity discharge (HID) lights, where they have ionized gases at temperatures going beyond 1000 ° C while holding up against electric possibilities of numerous kilovolts.
In plasma etching and deposition systems, alumina tubes function as dielectric windows or gas circulation parts, withstanding ion barrage and thermal biking without breaking or outgassing.
Their low dielectric loss and high arc resistance protect against electric monitoring and break down, making sure lengthy service life in switchgear and power transmission parts.
These buildings are critical in maintaining process security and equipment reliability in advanced manufacturing and power systems.
4. Industrial and Arising Applications
4.1 High-Temperature and Industrial Handling Equipments
Alumina ceramic tubes are indispensable to a wide variety of commercial processes that demand resilience under extreme conditions.
In thermal handling, they function as protective sheaths for thermocouples and heating elements in kilns, heaters, and warmth therapy tools, shielding delicate components from harsh atmospheres and mechanical wear.
In liquid handling, they transport hostile chemicals, slurries, and high-temperature gases in petrochemical refineries, desalination plants, and waste incineration systems.
Their resistance to thermal shock allows quick heating and cooling down cycles without failure, a crucial advantage in cyclic commercial operations.
In glass manufacturing, alumina tubes lead molten glass circulations and assistance developing devices, resisting erosion from thick, high-temperature thaws.
4.2 Advanced Technologies and Future Assimilation
Beyond standard commercial uses, alumina tubes are discovering new duties in advanced technologies.
In semiconductor fabrication, ultra-pure alumina tubes are utilized in chemical vapor deposition (CVD) activators and ion implantation systems, where bit generation and metallic contamination should be minimized.
In medical tools, biocompatible alumina tubes function as shielding elements in medical tools, dental implants, and diagnostic sensors.
Research is discovering functionalized alumina tubes with embedded sensing units or conductive traces for wise structural tracking in aerospace and power systems.
Additive production (3D printing) of alumina is emerging as a technique to produce complicated tube geometries with internal channels or rated structures, enabling next-generation heat exchangers and microreactors.
As industries press towards greater effectiveness, cleaner processes, and greater dependability, alumina ceramic tubes remain to evolve as making it possible for components in the framework of modern-day innovation.
In summary, alumina ceramic tubes stand for a mature yet dynamically progressing course of engineered materials, integrating extraordinary thermal, mechanical, and electric performance in a single not natural avenue.
Their versatility throughout extreme settings guarantees their ongoing significance in both established commercial systems and arising state-of-the-art applications.
