Introduction: Key devices in power electronic devices
Silicon-controlled rectifiers (SCRs), also called thyristors, are semiconductor power tools with a four-layer triple junction framework (PNPN). Given that its intro in the 1950s, SCRs have been widely utilized in industrial automation, power systems, home device control and other fields due to their high stand up to voltage, huge existing carrying capacity, quick action and simple control. With the development of technology, SCRs have evolved right into many kinds, consisting of unidirectional SCRs, bidirectional SCRs (TRIACs), turn-off thyristors (GTOs) and light-controlled thyristors (LTTs). The differences between these types are not only mirrored in the framework and working principle, yet likewise determine their applicability in different application circumstances. This article will certainly begin with a technical viewpoint, integrated with specific criteria, to deeply examine the primary differences and typical uses these 4 SCRs.
Unidirectional SCR: Standard and steady application core
Unidirectional SCR is one of the most standard and common kind of thyristor. Its framework is a four-layer three-junction PNPN setup, consisting of 3 electrodes: anode (A), cathode (K) and gateway (G). It only permits existing to move in one direction (from anode to cathode) and turns on after the gate is triggered. Once switched on, even if the gate signal is eliminated, as long as the anode current is more than the holding current (typically much less than 100mA), the SCR continues to be on.

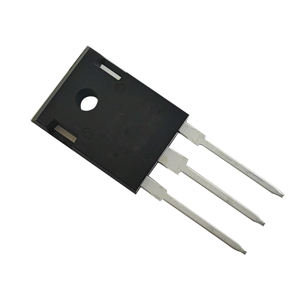

(Thyristor Rectifier)
Unidirectional SCR has solid voltage and current tolerance, with an ahead recurring peak voltage (V DRM) of up to 6500V and a rated on-state average existing (ITAV) of up to 5000A. As a result, it is widely used in DC electric motor control, industrial heating unit, uninterruptible power supply (UPS) correction components, power conditioning tools and other events that need continual transmission and high power handling. Its benefits are easy framework, affordable and high integrity, and it is a core element of several typical power control systems.
Bidirectional SCR (TRIAC): Suitable for air conditioning control
Unlike unidirectional SCR, bidirectional SCR, additionally called TRIAC, can achieve bidirectional conduction in both favorable and negative fifty percent cycles. This structure includes two anti-parallel SCRs, which enable TRIAC to be activated and activated any time in the AC cycle without altering the circuit link technique. The in proportion conduction voltage range of TRIAC is usually ± 400 ~ 800V, the optimum tons current is about 100A, and the trigger current is less than 50mA.
Because of the bidirectional conduction attributes of TRIAC, it is specifically appropriate for air conditioning dimming and speed control in family devices and consumer electronic devices. For instance, devices such as light dimmers, follower controllers, and a/c unit fan rate regulators all depend on TRIAC to achieve smooth power guideline. Furthermore, TRIAC additionally has a reduced driving power requirement and is suitable for integrated design, so it has actually been extensively utilized in clever home systems and tiny devices. Although the power thickness and switching rate of TRIAC are not comparable to those of new power tools, its low cost and hassle-free use make it an important gamer in the field of tiny and moderate power AC control.
Gateway Turn-Off Thyristor (GTO): A high-performance rep of energetic control
Gateway Turn-Off Thyristor (GTO) is a high-performance power device developed on the basis of traditional SCR. Unlike common SCR, which can just be turned off passively, GTO can be switched off actively by applying a negative pulse current to eviction, hence achieving even more adaptable control. This feature makes GTO do well in systems that require regular start-stop or quick reaction.

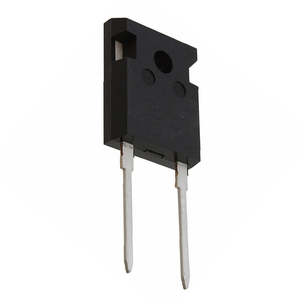

(Thyristor Rectifier)
The technological criteria of GTO show that it has extremely high power dealing with ability: the turn-off gain has to do with 4 ~ 5, the maximum operating voltage can reach 6000V, and the optimum operating current depends on 6000A. The turn-on time is about 1μs, and the turn-off time is 2 ~ 5μs. These efficiency indicators make GTO extensively made use of in high-power situations such as electric engine traction systems, big inverters, industrial electric motor regularity conversion control, and high-voltage DC transmission systems. Although the drive circuit of GTO is fairly complex and has high changing losses, its performance under high power and high dynamic feedback demands is still irreplaceable.
Light-controlled thyristor (LTT): A trusted option in the high-voltage isolation setting
Light-controlled thyristor (LTT) uses optical signals rather than electric signals to cause transmission, which is its biggest function that identifies it from other types of SCRs. The optical trigger wavelength of LTT is usually in between 850nm and 950nm, the reaction time is determined in milliseconds, and the insulation level can be as high as 100kV or above. This optoelectronic isolation device considerably enhances the system’s anti-electromagnetic interference capacity and safety.
LTT is primarily utilized in ultra-high voltage straight existing transmission (UHVDC), power system relay security tools, electro-magnetic compatibility defense in clinical tools, and armed forces radar communication systems and so on, which have very high requirements for safety and security. For instance, lots of converter terminals in China’s “West-to-East Power Transmission” project have actually adopted LTT-based converter shutoff components to make certain secure operation under exceptionally high voltage problems. Some progressed LTTs can also be combined with gate control to achieve bidirectional transmission or turn-off functions, better expanding their application array and making them an ideal selection for addressing high-voltage and high-current control issues.
