1. Principles of Foam Generation and the Duty in Lightweight Concrete Equipment
1.1 Concepts of Air Entrainment and Mobile Structure Formation

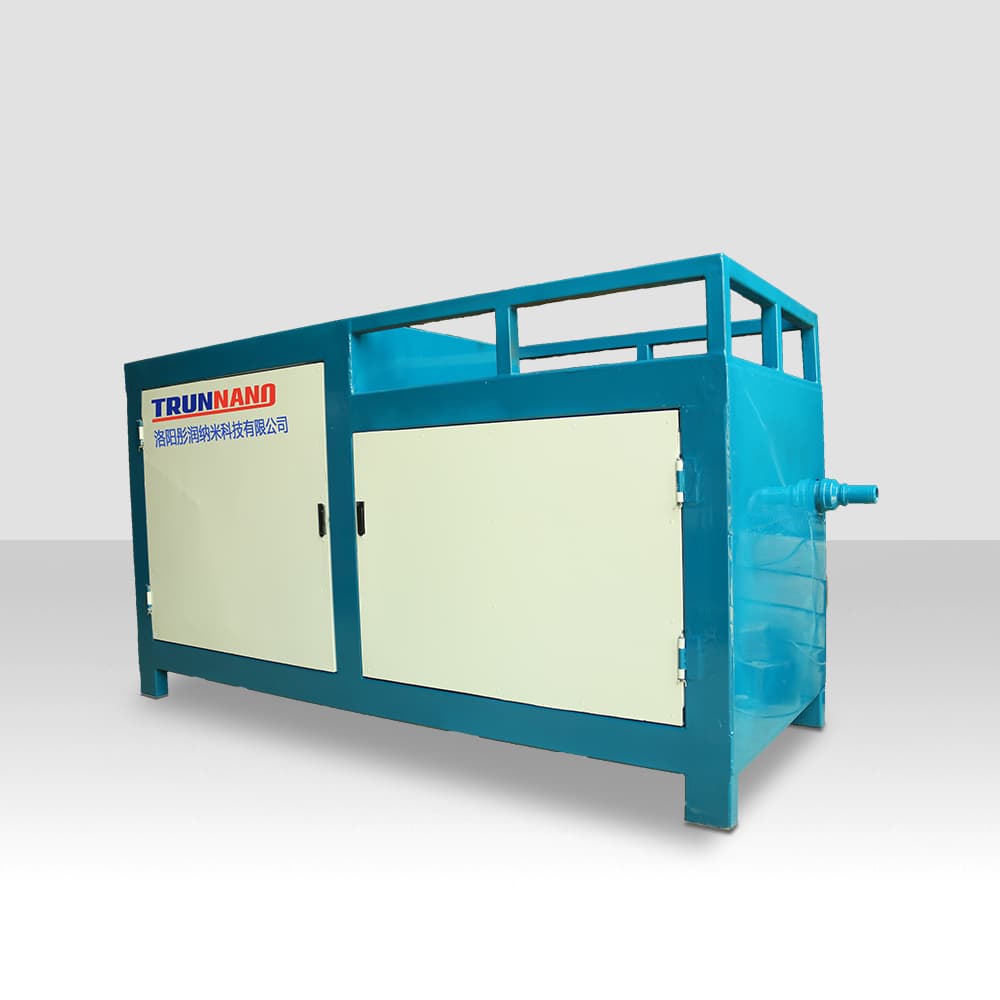

(Lightweight Concrete Foam Generators)
Lightweight concrete, a course of building and construction products defined by reduced thickness and improved thermal insulation, relies basically on the controlled introduction of air or gas gaps within a cementitious matrix– a procedure known as foaming.
The creation of these evenly distributed, secure air cells is accomplished through using a specialized gadget called a foam generator, which produces penalty, microscale bubbles that are consequently mixed right into the concrete slurry.
These bubbles, usually varying from 50 to 500 micrometers in diameter, end up being permanently entrained upon cement hydration, leading to a mobile concrete framework with dramatically lower unit weight– commonly in between 300 kg/m ³ and 1,800 kg/m THREE– contrasted to standard concrete (~ 2,400 kg/m THREE).
The foam generator is not merely an auxiliary tool however a vital design element that identifies the top quality, consistency, and performance of the last light-weight concrete product.
The procedure begins with a fluid foaming representative, generally a protein-based or synthetic surfactant service, which is introduced into the generator where it is mechanically or pneumatically spread right into a thick foam via high shear or pressed air injection.
The stability and bubble size circulation of the created foam directly influence vital material residential properties such as compressive toughness, thermal conductivity, and workability.
1.2 Classification and Operational Systems of Foam Generators
Foam generators are broadly categorized right into 3 key types based on their functional concepts: low-pressure (or wet-film), high-pressure (or dynamic), and rotating (or centrifugal) systems.
Low-pressure generators utilize a porous tool– such as a great mesh, fabric, or ceramic plate– through which compressed air is compelled, producing bubbles as the lathering solution streams over the surface.
This approach produces fairly huge, less consistent bubbles and is normally used for lower-grade applications where exact control is less critical.
High-pressure systems, in contrast, employ a nozzle-based style where a high-velocity stream of compressed air shears the foaming liquid right into a penalty, uniform foam with narrow bubble dimension distribution.
These systems offer premium control over foam thickness and stability, making them perfect for structural-grade light-weight concrete and precast applications.

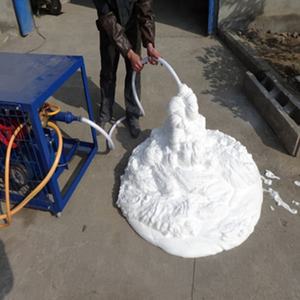

( Lightweight Concrete Foam Generators)
Rotary foam generators use a spinning disk or drum that flings the lathering service right into a stream of air, developing bubbles via mechanical diffusion.
While much less accurate than high-pressure systems, rotating generators are valued for their effectiveness, ease of maintenance, and continual outcome, appropriate for large on-site putting procedures.
The choice of foam generator kind relies on project-specific requirements, including preferred concrete density, manufacturing volume, and performance specs.
2. Product Scientific Research Behind Foam Security and Concrete Performance
2.1 Foaming Brokers and Interfacial Chemistry
The effectiveness of a foam generator is intrinsically linked to the chemical make-up and physical actions of the lathering agent.
Foaming agents are surfactants that lower the surface area stress of water, enabling the formation of steady air-liquid user interfaces.
Protein-based representatives, derived from hydrolyzed keratin or albumin, create resilient, flexible foam films with exceptional stability and are usually chosen in structural applications.
Artificial agents, such as alkyl sulfonates or ethoxylated alcohols, provide faster foam generation and reduced expense yet might create less secure bubbles under prolonged mixing or unfavorable ecological problems.
The molecular framework of the surfactant figures out the thickness and mechanical stamina of the lamellae (thin fluid films) bordering each bubble, which must stand up to coalescence and water drainage during mixing and treating.
Ingredients such as thickness modifiers, stabilizers, and pH buffers are usually included into foaming solutions to boost foam determination and compatibility with cement chemistry.
2.2 Impact of Foam Characteristics on Concrete Properties
The physical characteristics of the created foam– bubble size, size distribution, air content, and foam density– directly dictate the macroscopic habits of light-weight concrete.
Smaller sized, consistently distributed bubbles boost mechanical toughness by minimizing anxiety focus points and creating a much more uniform microstructure.
On the other hand, larger or irregular bubbles can serve as problems, minimizing compressive stamina and boosting permeability.
Foam security is similarly essential; early collapse or coalescence throughout mixing cause non-uniform thickness, partition, and reduced insulation efficiency.
The air-void system additionally impacts thermal conductivity, with finer, closed-cell structures supplying superior insulation because of caught air’s reduced thermal diffusivity.
In addition, the water material of the foam influences the water-cement ratio of the final mix, requiring exact calibration to avoid weakening the cement matrix or postponing hydration.
Advanced foam generators currently integrate real-time monitoring and comments systems to preserve consistent foam outcome, guaranteeing reproducibility throughout batches.
3. Assimilation in Modern Construction and Industrial Applications
3.1 Architectural and Non-Structural Uses of Foamed Concrete
Lightweight concrete produced using foam generators is utilized throughout a broad range of building and construction applications, varying from insulation panels and void filling up to load-bearing walls and sidewalk systems.
In building envelopes, frothed concrete offers outstanding thermal and acoustic insulation, adding to energy-efficient layouts and minimized HVAC tons.
Its low thickness likewise lowers structural dead load, permitting smaller sized foundations and longer spans in skyscraper and bridge building.
In civil design, it is used for trench backfilling, tunneling, and incline stabilization, where its self-leveling and low-stress qualities protect against ground disruption and enhance safety.
Precast manufacturers use high-precision foam generators to create light-weight blocks, panels, and building components with limited dimensional resistances and constant top quality.
Additionally, foamed concrete exhibits intrinsic fire resistance as a result of its low thermal conductivity and absence of natural elements, making it appropriate for fire-rated settings up and passive fire protection systems.
3.2 Automation, Scalability, and On-Site Production Equipments
Modern building and construction demands fast, scalable, and dependable manufacturing of lightweight concrete, driving the integration of foam generators right into computerized batching and pumping systems.
Totally automated plants can synchronize foam generation with concrete blending, water dosing, and additive shot, allowing constant manufacturing with marginal human treatment.
Mobile foam generator devices are significantly released on construction sites, permitting on-demand manufacture of foamed concrete directly at the point of usage, minimizing transportation expenses and product waste.
These systems are usually equipped with electronic controls, remote surveillance, and information logging capacities to make sure conformity with engineering specs and high quality criteria.
The scalability of foam generation technology– from little portable systems to industrial-scale systems– sustains its adoption in both created and emerging markets, advertising lasting building practices worldwide.
4. Technical Developments and Future Instructions in Foam Generation
4.1 Smart Foam Generators and Real-Time Refine Control
Emerging developments in foam generator layout concentrate on boosting accuracy, efficiency, and adaptability via digitalization and sensor combination.
Smart foam generators furnished with pressure sensors, flow meters, and optical bubble analyzers can dynamically readjust air-to-liquid ratios and monitor foam high quality in actual time.
Artificial intelligence algorithms are being discovered to forecast foam actions based upon environmental problems, raw material variations, and historic performance information.
Such developments intend to lessen batch-to-batch irregularity and optimize material performance, particularly in high-stakes applications like nuclear protecting or offshore building.
4.2 Sustainability, Environmental Impact, and Eco-friendly Product Assimilation
As the construction market approaches decarbonization, foam generators play a role in decreasing the ecological impact of concrete.
By decreasing product thickness, much less cement is required per unit volume, straight lowering CO ₂ discharges associated with cement production.
Moreover, frothed concrete can integrate supplementary cementitious products (SCMs) such as fly ash, slag, or silica fume, improving sustainability without jeopardizing performance.
Research study is likewise underway to develop bio-based foaming representatives derived from eco-friendly resources, decreasing dependence on petrochemical surfactants.
Future growths may consist of energy-efficient foam generation approaches, combination with carbon capture technologies, and recyclable concrete solutions enabled by stable mobile structures.
In conclusion, the light-weight concrete foam generator is much more than a mechanical tool– it is a critical enabler of advanced material design in modern-day building and construction.
By specifically managing the style of air gaps at the microscale, it transforms conventional concrete right into a multifunctional, sustainable, and high-performance product.
As technology evolves, foam generators will certainly continue to drive technology in structure scientific research, infrastructure durability, and ecological stewardship.
