1. Material Basics and Crystal Chemistry
1.1 Composition and Polymorphic Structure

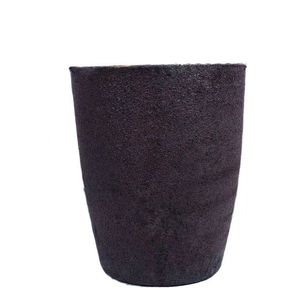

(Silicon Carbide Ceramics)
Silicon carbide (SiC) is a covalent ceramic compound composed of silicon and carbon atoms in a 1:1 stoichiometric proportion, renowned for its exceptional solidity, thermal conductivity, and chemical inertness.
It exists in over 250 polytypes– crystal structures varying in stacking series– amongst which 3C-SiC (cubic), 4H-SiC, and 6H-SiC (hexagonal) are the most technically appropriate.
The strong directional covalent bonds (Si– C bond energy ~ 318 kJ/mol) cause a high melting point (~ 2700 ° C), low thermal development (~ 4.0 × 10 ⁻⁶/ K), and excellent resistance to thermal shock.
Unlike oxide porcelains such as alumina, SiC does not have a native glassy phase, adding to its security in oxidizing and harsh environments as much as 1600 ° C.
Its large bandgap (2.3– 3.3 eV, relying on polytype) also enhances it with semiconductor properties, making it possible for double usage in structural and electronic applications.
1.2 Sintering Difficulties and Densification Approaches
Pure SiC is exceptionally hard to densify due to its covalent bonding and low self-diffusion coefficients, necessitating the use of sintering help or sophisticated handling methods.
Reaction-bonded SiC (RB-SiC) is generated by infiltrating permeable carbon preforms with liquified silicon, developing SiC in situ; this technique returns near-net-shape components with residual silicon (5– 20%).
Solid-state sintered SiC (SSiC) makes use of boron and carbon additives to advertise densification at ~ 2000– 2200 ° C under inert environment, attaining > 99% theoretical density and remarkable mechanical residential properties.
Liquid-phase sintered SiC (LPS-SiC) utilizes oxide additives such as Al Two O ₃– Y ₂ O THREE, creating a transient liquid that enhances diffusion yet may decrease high-temperature strength due to grain-boundary stages.
Hot pressing and spark plasma sintering (SPS) supply rapid, pressure-assisted densification with great microstructures, ideal for high-performance parts requiring marginal grain growth.
2. Mechanical and Thermal Performance Characteristics
2.1 Toughness, Hardness, and Wear Resistance
Silicon carbide porcelains show Vickers hardness worths of 25– 30 GPa, second only to diamond and cubic boron nitride among engineering products.
Their flexural strength normally ranges from 300 to 600 MPa, with crack toughness (K_IC) of 3– 5 MPa · m 1ST/ TWO– moderate for porcelains yet enhanced through microstructural design such as hair or fiber support.
The combination of high solidity and elastic modulus (~ 410 GPa) makes SiC extremely resistant to unpleasant and abrasive wear, outshining tungsten carbide and set steel in slurry and particle-laden settings.

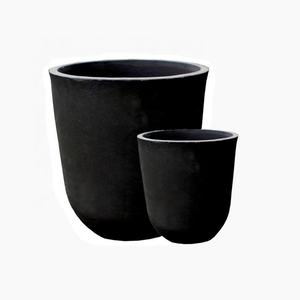

( Silicon Carbide Ceramics)
In industrial applications such as pump seals, nozzles, and grinding media, SiC components show service lives a number of times much longer than conventional options.
Its low density (~ 3.1 g/cm FIVE) further adds to wear resistance by reducing inertial forces in high-speed revolving parts.
2.2 Thermal Conductivity and Stability
Among SiC’s most distinguishing functions is its high thermal conductivity– varying from 80 to 120 W/(m · K )for polycrystalline kinds, and up to 490 W/(m · K) for single-crystal 4H-SiC– going beyond most steels except copper and aluminum.
This building allows effective heat dissipation in high-power electronic substrates, brake discs, and warmth exchanger parts.
Combined with low thermal development, SiC exhibits outstanding thermal shock resistance, evaluated by the R-parameter (σ(1– ν)k/ αE), where high values suggest resilience to rapid temperature level adjustments.
As an example, SiC crucibles can be heated from area temperature to 1400 ° C in mins without breaking, an accomplishment unattainable for alumina or zirconia in comparable conditions.
Moreover, SiC maintains stamina approximately 1400 ° C in inert ambiences, making it perfect for heating system fixtures, kiln furnishings, and aerospace elements exposed to severe thermal cycles.
3. Chemical Inertness and Deterioration Resistance
3.1 Actions in Oxidizing and Reducing Environments
At temperature levels below 800 ° C, SiC is highly stable in both oxidizing and decreasing settings.
Above 800 ° C in air, a protective silica (SiO TWO) layer types on the surface area via oxidation (SiC + 3/2 O TWO → SiO TWO + CARBON MONOXIDE), which passivates the product and reduces additional deterioration.
Nevertheless, in water vapor-rich or high-velocity gas streams above 1200 ° C, this silica layer can volatilize as Si(OH)₄, bring about sped up economic crisis– an important consideration in wind turbine and combustion applications.
In minimizing atmospheres or inert gases, SiC continues to be steady approximately its decay temperature (~ 2700 ° C), without stage adjustments or stamina loss.
This security makes it suitable for molten metal handling, such as aluminum or zinc crucibles, where it resists moistening and chemical strike far much better than graphite or oxides.
3.2 Resistance to Acids, Alkalis, and Molten Salts
Silicon carbide is essentially inert to all acids except hydrofluoric acid (HF) and strong oxidizing acid combinations (e.g., HF– HNO SIX).
It shows superb resistance to alkalis approximately 800 ° C, though long term direct exposure to molten NaOH or KOH can cause surface area etching through development of soluble silicates.
In molten salt settings– such as those in focused solar energy (CSP) or atomic power plants– SiC shows premium corrosion resistance compared to nickel-based superalloys.
This chemical toughness underpins its use in chemical process equipment, including valves, liners, and warm exchanger tubes dealing with aggressive media like chlorine, sulfuric acid, or salt water.
4. Industrial Applications and Emerging Frontiers
4.1 Established Makes Use Of in Energy, Protection, and Manufacturing
Silicon carbide porcelains are integral to many high-value industrial systems.
In the power market, they function as wear-resistant linings in coal gasifiers, parts in nuclear gas cladding (SiC/SiC compounds), and substratums for high-temperature strong oxide fuel cells (SOFCs).
Defense applications consist of ballistic shield plates, where SiC’s high hardness-to-density proportion provides premium defense against high-velocity projectiles compared to alumina or boron carbide at lower expense.
In manufacturing, SiC is used for accuracy bearings, semiconductor wafer dealing with parts, and unpleasant blowing up nozzles because of its dimensional stability and purity.
Its usage in electric car (EV) inverters as a semiconductor substrate is quickly expanding, driven by efficiency gains from wide-bandgap electronics.
4.2 Next-Generation Dopes and Sustainability
Continuous study concentrates on SiC fiber-reinforced SiC matrix composites (SiC/SiC), which exhibit pseudo-ductile habits, improved toughness, and preserved stamina above 1200 ° C– suitable for jet engines and hypersonic lorry leading sides.
Additive manufacturing of SiC using binder jetting or stereolithography is advancing, making it possible for complex geometries previously unattainable via conventional developing approaches.
From a sustainability perspective, SiC’s durability minimizes substitute regularity and lifecycle discharges in commercial systems.
Recycling of SiC scrap from wafer slicing or grinding is being developed via thermal and chemical healing procedures to recover high-purity SiC powder.
As sectors press toward greater performance, electrification, and extreme-environment procedure, silicon carbide-based ceramics will certainly continue to be at the center of sophisticated products engineering, connecting the void between structural strength and useful versatility.
