1. Product Foundations and Synergistic Layout
1.1 Innate Features of Constituent Phases

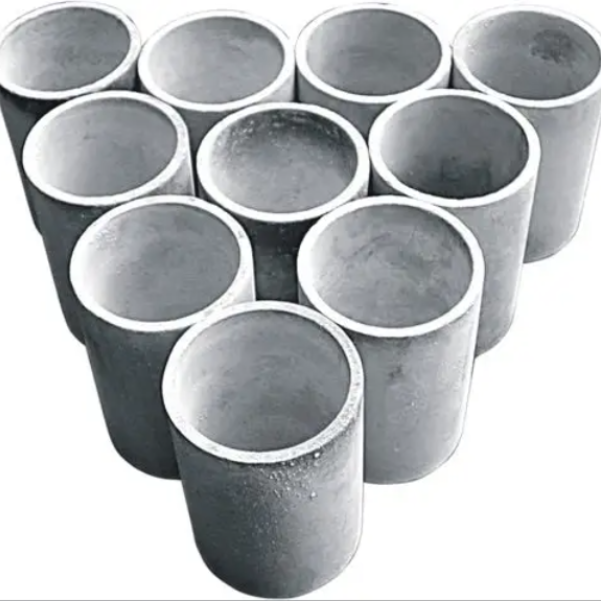

(Silicon nitride and silicon carbide composite ceramic)
Silicon nitride (Si three N FOUR) and silicon carbide (SiC) are both covalently bound, non-oxide porcelains renowned for their extraordinary performance in high-temperature, harsh, and mechanically requiring settings.
Silicon nitride shows outstanding crack sturdiness, thermal shock resistance, and creep stability due to its distinct microstructure made up of extended β-Si ₃ N four grains that allow crack deflection and linking mechanisms.
It keeps toughness as much as 1400 ° C and possesses a fairly reduced thermal development coefficient (~ 3.2 × 10 ⁻⁶/ K), lessening thermal stress and anxieties during quick temperature changes.
In contrast, silicon carbide uses remarkable hardness, thermal conductivity (up to 120– 150 W/(m · K )for solitary crystals), oxidation resistance, and chemical inertness, making it optimal for unpleasant and radiative heat dissipation applications.
Its broad bandgap (~ 3.3 eV for 4H-SiC) also confers superb electric insulation and radiation resistance, beneficial in nuclear and semiconductor contexts.
When combined right into a composite, these materials show corresponding habits: Si ₃ N four improves sturdiness and damages tolerance, while SiC enhances thermal administration and put on resistance.
The resulting crossbreed ceramic accomplishes an equilibrium unattainable by either stage alone, developing a high-performance structural material tailored for severe solution conditions.
1.2 Composite Style and Microstructural Engineering
The style of Si ₃ N ₄– SiC composites involves specific control over stage circulation, grain morphology, and interfacial bonding to maximize collaborating results.
Commonly, SiC is presented as fine particle reinforcement (varying from submicron to 1 µm) within a Si six N ₄ matrix, although functionally rated or layered styles are also explored for specialized applications.
Throughout sintering– typically via gas-pressure sintering (GPS) or warm pressing– SiC fragments influence the nucleation and development kinetics of β-Si ₃ N ₄ grains, frequently promoting finer and more evenly oriented microstructures.
This improvement improves mechanical homogeneity and decreases defect dimension, contributing to enhanced strength and dependability.
Interfacial compatibility in between both phases is vital; because both are covalent porcelains with similar crystallographic balance and thermal development actions, they develop coherent or semi-coherent borders that stand up to debonding under load.
Additives such as yttria (Y ₂ O TWO) and alumina (Al ₂ O TWO) are made use of as sintering help to promote liquid-phase densification of Si four N four without compromising the stability of SiC.
However, extreme secondary phases can break down high-temperature efficiency, so structure and processing should be enhanced to decrease lustrous grain boundary movies.
2. Handling Techniques and Densification Obstacles

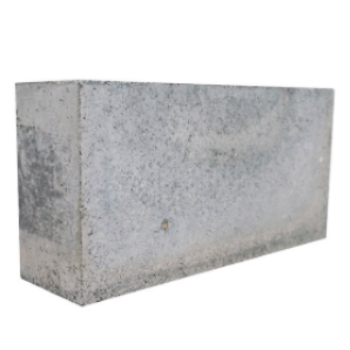

( Silicon nitride and silicon carbide composite ceramic)
2.1 Powder Prep Work and Shaping Approaches
High-quality Si ₃ N ₄– SiC compounds start with uniform mixing of ultrafine, high-purity powders using damp round milling, attrition milling, or ultrasonic dispersion in organic or aqueous media.
Accomplishing uniform diffusion is crucial to stop load of SiC, which can work as anxiety concentrators and minimize fracture strength.
Binders and dispersants are included in support suspensions for forming strategies such as slip spreading, tape spreading, or injection molding, depending on the desired component geometry.
Eco-friendly bodies are after that carefully dried and debound to remove organics before sintering, a process requiring regulated home heating rates to avoid breaking or buckling.
For near-net-shape manufacturing, additive methods like binder jetting or stereolithography are arising, allowing complex geometries formerly unattainable with conventional ceramic handling.
These approaches require tailored feedstocks with optimized rheology and green strength, often involving polymer-derived ceramics or photosensitive resins filled with composite powders.
2.2 Sintering Systems and Stage Stability
Densification of Si Four N FOUR– SiC composites is testing due to the solid covalent bonding and limited self-diffusion of nitrogen and carbon at functional temperature levels.
Liquid-phase sintering using rare-earth or alkaline earth oxides (e.g., Y ₂ O SIX, MgO) reduces the eutectic temperature level and enhances mass transportation with a transient silicate thaw.
Under gas stress (normally 1– 10 MPa N ₂), this melt facilitates rearrangement, solution-precipitation, and final densification while reducing decomposition of Si six N ₄.
The visibility of SiC impacts thickness and wettability of the fluid stage, possibly altering grain development anisotropy and last structure.
Post-sintering warm therapies may be put on take shape recurring amorphous stages at grain boundaries, boosting high-temperature mechanical residential or commercial properties and oxidation resistance.
X-ray diffraction (XRD) and scanning electron microscopy (SEM) are consistently utilized to validate phase purity, lack of unwanted second stages (e.g., Si ₂ N ₂ O), and consistent microstructure.
3. Mechanical and Thermal Performance Under Load
3.1 Strength, Strength, and Exhaustion Resistance
Si Four N FOUR– SiC compounds demonstrate remarkable mechanical performance compared to monolithic ceramics, with flexural strengths exceeding 800 MPa and fracture sturdiness values reaching 7– 9 MPa · m ONE/ ².
The strengthening impact of SiC fragments hampers misplacement activity and crack propagation, while the elongated Si ₃ N four grains remain to offer toughening through pull-out and bridging mechanisms.
This dual-toughening approach causes a material extremely resistant to influence, thermal biking, and mechanical tiredness– important for revolving elements and structural elements in aerospace and energy systems.
Creep resistance remains exceptional as much as 1300 ° C, attributed to the stability of the covalent network and reduced grain boundary sliding when amorphous stages are lowered.
Hardness worths generally range from 16 to 19 GPa, supplying excellent wear and disintegration resistance in unpleasant environments such as sand-laden circulations or sliding contacts.
3.2 Thermal Management and Environmental Resilience
The enhancement of SiC considerably boosts the thermal conductivity of the composite, often increasing that of pure Si six N FOUR (which varies from 15– 30 W/(m · K) )to 40– 60 W/(m · K) relying on SiC web content and microstructure.
This enhanced warm transfer ability enables a lot more efficient thermal management in components exposed to extreme local heating, such as combustion liners or plasma-facing components.
The composite preserves dimensional security under high thermal gradients, standing up to spallation and breaking due to matched thermal expansion and high thermal shock criterion (R-value).
Oxidation resistance is another vital benefit; SiC creates a protective silica (SiO ₂) layer upon direct exposure to oxygen at elevated temperature levels, which even more compresses and seals surface problems.
This passive layer shields both SiC and Si ₃ N FOUR (which also oxidizes to SiO ₂ and N TWO), making certain long-lasting toughness in air, vapor, or combustion ambiences.
4. Applications and Future Technological Trajectories
4.1 Aerospace, Energy, and Industrial Equipment
Si ₃ N ₄– SiC composites are significantly deployed in next-generation gas wind turbines, where they enable greater running temperature levels, enhanced gas effectiveness, and minimized air conditioning requirements.
Components such as turbine blades, combustor linings, and nozzle guide vanes take advantage of the material’s capability to withstand thermal biking and mechanical loading without significant deterioration.
In atomic power plants, particularly high-temperature gas-cooled activators (HTGRs), these composites function as fuel cladding or structural assistances due to their neutron irradiation tolerance and fission product retention capability.
In industrial setups, they are used in liquified steel handling, kiln furnishings, and wear-resistant nozzles and bearings, where standard steels would fail prematurely.
Their light-weight nature (density ~ 3.2 g/cm ³) also makes them eye-catching for aerospace propulsion and hypersonic car elements subject to aerothermal home heating.
4.2 Advanced Manufacturing and Multifunctional Combination
Arising research concentrates on developing functionally graded Si five N FOUR– SiC structures, where composition varies spatially to optimize thermal, mechanical, or electro-magnetic homes throughout a solitary part.
Crossbreed systems incorporating CMC (ceramic matrix composite) designs with fiber reinforcement (e.g., SiC_f/ SiC– Si Five N ₄) push the borders of damage resistance and strain-to-failure.
Additive manufacturing of these composites enables topology-optimized heat exchangers, microreactors, and regenerative cooling channels with internal latticework frameworks unachievable through machining.
Moreover, their fundamental dielectric buildings and thermal stability make them prospects for radar-transparent radomes and antenna home windows in high-speed platforms.
As demands grow for products that carry out accurately under severe thermomechanical tons, Si two N ₄– SiC composites represent a critical advancement in ceramic design, combining robustness with capability in a single, lasting system.
To conclude, silicon nitride– silicon carbide composite ceramics exemplify the power of materials-by-design, leveraging the strengths of two advanced ceramics to create a crossbreed system efficient in prospering in the most serious operational environments.
Their continued development will certainly play a central role in advancing clean energy, aerospace, and commercial innovations in the 21st century.
