1. Product Basics and Structural Features of Alumina
1.1 Crystallographic Phases and Surface Area Attributes

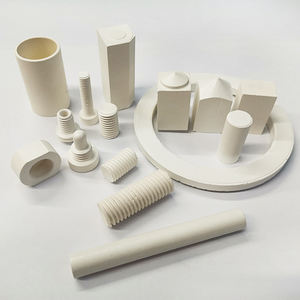

(Alumina Ceramic Chemical Catalyst Supports)
Alumina (Al Two O TWO), specifically in its α-phase type, is among one of the most commonly used ceramic materials for chemical catalyst sustains as a result of its superb thermal stability, mechanical strength, and tunable surface chemistry.
It exists in numerous polymorphic kinds, consisting of γ, δ, θ, and α-alumina, with γ-alumina being one of the most typical for catalytic applications as a result of its high certain surface (100– 300 m ²/ g )and permeable framework.
Upon heating above 1000 ° C, metastable transition aluminas (e.g., γ, δ) progressively transform right into the thermodynamically secure α-alumina (corundum framework), which has a denser, non-porous crystalline latticework and considerably lower surface area (~ 10 m ²/ g), making it much less suitable for energetic catalytic dispersion.
The high area of γ-alumina develops from its malfunctioning spinel-like structure, which consists of cation openings and enables the anchoring of metal nanoparticles and ionic species.
Surface area hydroxyl groups (– OH) on alumina work as Brønsted acid sites, while coordinatively unsaturated Al SIX ⁺ ions serve as Lewis acid websites, enabling the material to take part straight in acid-catalyzed reactions or stabilize anionic intermediates.
These intrinsic surface area residential or commercial properties make alumina not simply an easy provider but an energetic factor to catalytic systems in many industrial processes.
1.2 Porosity, Morphology, and Mechanical Honesty
The effectiveness of alumina as a driver support depends seriously on its pore framework, which governs mass transport, ease of access of active websites, and resistance to fouling.
Alumina sustains are crafted with controlled pore size distributions– ranging from mesoporous (2– 50 nm) to macroporous (> 50 nm)– to stabilize high surface area with efficient diffusion of reactants and items.
High porosity enhances diffusion of catalytically active steels such as platinum, palladium, nickel, or cobalt, stopping agglomeration and taking full advantage of the number of energetic sites each volume.
Mechanically, alumina shows high compressive strength and attrition resistance, vital for fixed-bed and fluidized-bed activators where stimulant bits go through prolonged mechanical stress and thermal cycling.
Its reduced thermal development coefficient and high melting point (~ 2072 ° C )guarantee dimensional security under severe operating problems, including elevated temperatures and harsh settings.

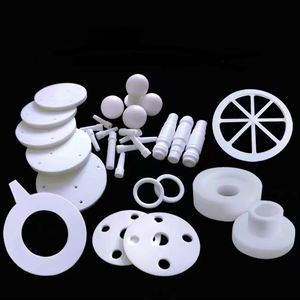

( Alumina Ceramic Chemical Catalyst Supports)
Additionally, alumina can be made right into numerous geometries– pellets, extrudates, monoliths, or foams– to enhance pressure decline, warmth transfer, and reactor throughput in massive chemical engineering systems.
2. Function and Mechanisms in Heterogeneous Catalysis
2.1 Energetic Steel Diffusion and Stabilization
One of the key features of alumina in catalysis is to function as a high-surface-area scaffold for dispersing nanoscale metal fragments that act as energetic facilities for chemical changes.
With strategies such as impregnation, co-precipitation, or deposition-precipitation, noble or change metals are evenly distributed throughout the alumina surface, developing highly spread nanoparticles with diameters often listed below 10 nm.
The strong metal-support communication (SMSI) in between alumina and steel fragments improves thermal stability and inhibits sintering– the coalescence of nanoparticles at high temperatures– which would otherwise lower catalytic activity over time.
For instance, in oil refining, platinum nanoparticles supported on γ-alumina are key components of catalytic changing drivers utilized to generate high-octane fuel.
In a similar way, in hydrogenation reactions, nickel or palladium on alumina helps with the addition of hydrogen to unsaturated organic substances, with the support avoiding particle movement and deactivation.
2.2 Promoting and Modifying Catalytic Activity
Alumina does not just serve as an easy platform; it proactively influences the electronic and chemical habits of sustained metals.
The acidic surface area of γ-alumina can promote bifunctional catalysis, where acid websites militarize isomerization, fracturing, or dehydration actions while steel sites deal with hydrogenation or dehydrogenation, as seen in hydrocracking and reforming procedures.
Surface area hydroxyl teams can take part in spillover phenomena, where hydrogen atoms dissociated on steel websites move onto the alumina surface area, expanding the zone of reactivity beyond the metal particle itself.
Moreover, alumina can be doped with elements such as chlorine, fluorine, or lanthanum to customize its acidity, improve thermal security, or enhance steel diffusion, customizing the assistance for details reaction settings.
These adjustments allow fine-tuning of catalyst performance in regards to selectivity, conversion effectiveness, and resistance to poisoning by sulfur or coke deposition.
3. Industrial Applications and Process Assimilation
3.1 Petrochemical and Refining Processes
Alumina-supported catalysts are essential in the oil and gas market, specifically in catalytic breaking, hydrodesulfurization (HDS), and vapor reforming.
In fluid catalytic splitting (FCC), although zeolites are the primary active phase, alumina is commonly incorporated into the stimulant matrix to improve mechanical strength and give additional cracking sites.
For HDS, cobalt-molybdenum or nickel-molybdenum sulfides are sustained on alumina to eliminate sulfur from petroleum portions, helping meet environmental regulations on sulfur material in fuels.
In steam methane changing (SMR), nickel on alumina catalysts convert methane and water right into syngas (H ₂ + CARBON MONOXIDE), a crucial action in hydrogen and ammonia production, where the support’s stability under high-temperature heavy steam is crucial.
3.2 Environmental and Energy-Related Catalysis
Beyond refining, alumina-supported drivers play vital duties in exhaust control and tidy power technologies.
In vehicle catalytic converters, alumina washcoats act as the primary support for platinum-group steels (Pt, Pd, Rh) that oxidize carbon monoxide and hydrocarbons and decrease NOₓ emissions.
The high area of γ-alumina makes best use of direct exposure of rare-earth elements, minimizing the required loading and total cost.
In careful catalytic reduction (SCR) of NOₓ making use of ammonia, vanadia-titania drivers are typically sustained on alumina-based substratums to improve longevity and diffusion.
Additionally, alumina assistances are being checked out in emerging applications such as carbon monoxide ₂ hydrogenation to methanol and water-gas shift responses, where their security under minimizing problems is useful.
4. Challenges and Future Development Directions
4.1 Thermal Security and Sintering Resistance
A significant constraint of traditional γ-alumina is its stage change to α-alumina at heats, leading to devastating loss of surface and pore structure.
This restricts its usage in exothermic responses or regenerative procedures including periodic high-temperature oxidation to get rid of coke down payments.
Research concentrates on maintaining the change aluminas via doping with lanthanum, silicon, or barium, which inhibit crystal growth and delay phase improvement approximately 1100– 1200 ° C.
One more approach involves producing composite assistances, such as alumina-zirconia or alumina-ceria, to integrate high surface area with improved thermal durability.
4.2 Poisoning Resistance and Regeneration Ability
Driver deactivation due to poisoning by sulfur, phosphorus, or hefty metals continues to be a difficulty in commercial procedures.
Alumina’s surface can adsorb sulfur compounds, obstructing active websites or responding with supported metals to create non-active sulfides.
Developing sulfur-tolerant solutions, such as making use of standard marketers or protective finishes, is vital for expanding driver life in sour settings.
Just as important is the ability to regrow invested drivers via regulated oxidation or chemical washing, where alumina’s chemical inertness and mechanical robustness allow for several regeneration cycles without architectural collapse.
Finally, alumina ceramic stands as a foundation material in heterogeneous catalysis, incorporating structural toughness with flexible surface area chemistry.
Its function as a catalyst support prolongs much past easy immobilization, proactively affecting response pathways, improving metal dispersion, and making it possible for large industrial procedures.
Recurring improvements in nanostructuring, doping, and composite style continue to expand its capacities in sustainable chemistry and energy conversion modern technologies.
