1. Product Principles and Architectural Residence
1.1 Crystal Chemistry and Polymorphism

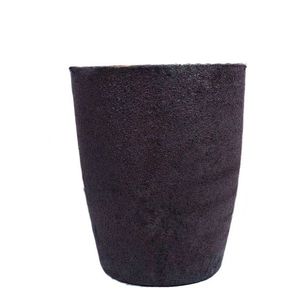

(Silicon Carbide Crucibles)
Silicon carbide (SiC) is a covalent ceramic made up of silicon and carbon atoms organized in a tetrahedral lattice, creating among the most thermally and chemically robust materials recognized.
It exists in over 250 polytypic types, with the 3C (cubic), 4H, and 6H hexagonal frameworks being most relevant for high-temperature applications.
The strong Si– C bonds, with bond power surpassing 300 kJ/mol, confer phenomenal hardness, thermal conductivity, and resistance to thermal shock and chemical attack.
In crucible applications, sintered or reaction-bonded SiC is liked due to its ability to preserve structural stability under extreme thermal slopes and corrosive molten environments.
Unlike oxide porcelains, SiC does not undertake turbulent phase shifts as much as its sublimation point (~ 2700 ° C), making it excellent for continual procedure above 1600 ° C.
1.2 Thermal and Mechanical Performance
A specifying attribute of SiC crucibles is their high thermal conductivity– varying from 80 to 120 W/(m · K)– which advertises consistent heat circulation and lessens thermal stress during quick home heating or cooling.
This residential property contrasts dramatically with low-conductivity porcelains like alumina (≈ 30 W/(m · K)), which are prone to breaking under thermal shock.
SiC additionally displays exceptional mechanical stamina at raised temperature levels, retaining over 80% of its room-temperature flexural stamina (as much as 400 MPa) also at 1400 ° C.
Its reduced coefficient of thermal development (~ 4.0 × 10 ⁻⁶/ K) additionally boosts resistance to thermal shock, a critical factor in repeated cycling in between ambient and operational temperature levels.
Furthermore, SiC shows remarkable wear and abrasion resistance, making sure lengthy life span in settings involving mechanical handling or unstable thaw circulation.
2. Production Techniques and Microstructural Control

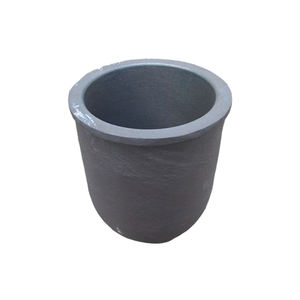

( Silicon Carbide Crucibles)
2.1 Sintering Methods and Densification Strategies
Business SiC crucibles are primarily produced with pressureless sintering, reaction bonding, or warm pressing, each offering distinct benefits in expense, pureness, and efficiency.
Pressureless sintering entails condensing great SiC powder with sintering help such as boron and carbon, followed by high-temperature therapy (2000– 2200 ° C )in inert ambience to accomplish near-theoretical density.
This approach returns high-purity, high-strength crucibles suitable for semiconductor and progressed alloy processing.
Reaction-bonded SiC (RBSC) is produced by infiltrating a porous carbon preform with liquified silicon, which responds to create β-SiC sitting, resulting in a composite of SiC and recurring silicon.
While a little lower in thermal conductivity as a result of metal silicon additions, RBSC supplies superb dimensional stability and reduced manufacturing cost, making it preferred for massive industrial usage.
Hot-pressed SiC, though much more costly, offers the highest thickness and purity, booked for ultra-demanding applications such as single-crystal development.
2.2 Surface Area High Quality and Geometric Accuracy
Post-sintering machining, consisting of grinding and washing, guarantees accurate dimensional resistances and smooth interior surface areas that lessen nucleation sites and minimize contamination threat.
Surface area roughness is carefully controlled to stop thaw adhesion and assist in very easy launch of solidified products.
Crucible geometry– such as wall surface thickness, taper angle, and bottom curvature– is maximized to stabilize thermal mass, structural strength, and compatibility with furnace burner.
Custom-made designs suit details thaw volumes, home heating accounts, and product reactivity, ensuring ideal efficiency across varied commercial processes.
Advanced quality control, consisting of X-ray diffraction, scanning electron microscopy, and ultrasonic screening, validates microstructural homogeneity and lack of problems like pores or splits.
3. Chemical Resistance and Communication with Melts
3.1 Inertness in Hostile Environments
SiC crucibles exhibit exceptional resistance to chemical assault by molten metals, slags, and non-oxidizing salts, exceeding traditional graphite and oxide ceramics.
They are stable in contact with liquified aluminum, copper, silver, and their alloys, resisting wetting and dissolution because of reduced interfacial power and development of protective surface area oxides.
In silicon and germanium handling for photovoltaics and semiconductors, SiC crucibles stop metal contamination that can weaken electronic properties.
Nevertheless, under very oxidizing conditions or in the visibility of alkaline fluxes, SiC can oxidize to create silica (SiO TWO), which may react even more to develop low-melting-point silicates.
Consequently, SiC is best matched for neutral or reducing atmospheres, where its security is taken full advantage of.
3.2 Limitations and Compatibility Considerations
Despite its robustness, SiC is not universally inert; it responds with particular liquified products, specifically iron-group steels (Fe, Ni, Co) at heats with carburization and dissolution processes.
In molten steel processing, SiC crucibles deteriorate swiftly and are for that reason avoided.
Likewise, antacids and alkaline earth metals (e.g., Li, Na, Ca) can minimize SiC, releasing carbon and forming silicides, limiting their use in battery product synthesis or responsive metal spreading.
For molten glass and ceramics, SiC is usually suitable but might introduce trace silicon right into highly delicate optical or digital glasses.
Understanding these material-specific communications is important for picking the suitable crucible kind and making certain procedure pureness and crucible durability.
4. Industrial Applications and Technological Advancement
4.1 Metallurgy, Semiconductor, and Renewable Energy Sectors
SiC crucibles are crucial in the manufacturing of multicrystalline and monocrystalline silicon ingots for solar batteries, where they withstand extended exposure to thaw silicon at ~ 1420 ° C.
Their thermal security guarantees consistent condensation and decreases misplacement thickness, straight influencing photovoltaic or pv performance.
In shops, SiC crucibles are made use of for melting non-ferrous steels such as aluminum and brass, supplying longer service life and reduced dross formation contrasted to clay-graphite alternatives.
They are additionally utilized in high-temperature research laboratories for thermogravimetric analysis, differential scanning calorimetry, and synthesis of innovative porcelains and intermetallic substances.
4.2 Future Trends and Advanced Material Assimilation
Emerging applications include using SiC crucibles in next-generation nuclear products screening and molten salt activators, where their resistance to radiation and molten fluorides is being examined.
Coatings such as pyrolytic boron nitride (PBN) or yttria (Y ₂ O THREE) are being related to SiC surface areas to better improve chemical inertness and protect against silicon diffusion in ultra-high-purity procedures.
Additive manufacturing of SiC elements utilizing binder jetting or stereolithography is under advancement, promising complex geometries and quick prototyping for specialized crucible designs.
As demand grows for energy-efficient, resilient, and contamination-free high-temperature handling, silicon carbide crucibles will continue to be a foundation innovation in innovative products producing.
In conclusion, silicon carbide crucibles stand for a critical allowing part in high-temperature commercial and scientific procedures.
Their unrivaled combination of thermal security, mechanical strength, and chemical resistance makes them the product of option for applications where efficiency and reliability are paramount.
